GZ-155 LED Intelligent Aero-obstruction lantern (medium light intensity)

Description

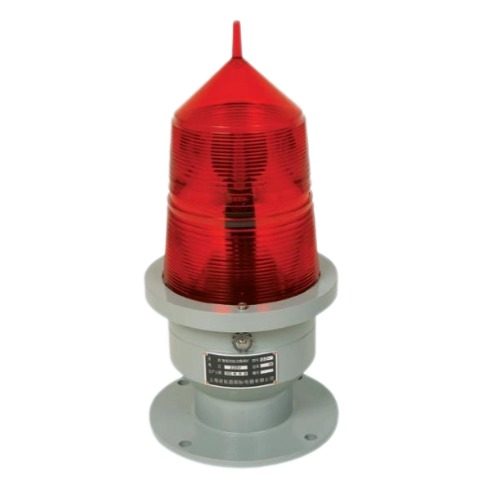

The GZ-155 LED intelligent Aero-obstruction lantern is composed of lantern holder made with aluminum and red or white Fresnel light filtration lens made with Germany imported polycarbonate materials as the lantern shade, which has the impact resistance, anti-aging and high intensity characteristics. The light source adopts imported high-brightness LED. The arrangement of LBD adopts the unique design method of first arranged and combined by dividing the circle equally, which produces especially excellent flashing effect. Combined with the optimized constant current control circuit, there will be no influence to the life cycle of LBD and the flashing effect due to the voltage change.

Ways of flashing:
1.synchronized flashing – centralized control box
2.synchronized flashing – master control light
3.single flashing – intelligent

Main parameters:
1.Operating voltage: AC220V
2.Light source: imported high-brightness LED
3.Life cycle of light source: 80,000 hours
4.Watt loss: <30W 5.Flashing frequency: 20-30 times/minute 6.Light intensity available: >3000cd
7.Flashing light color: red, white, yellow, green
8.Installation dimension: 4 holes of 14mm diameters well-distributed on the 195mm pitch circle
9.Sealing grade: IP 65
10.Ambient temperature: -40℃~+70℃
11.Net weight: 4.2Kg
12.Dimension: 220×220×450mm
