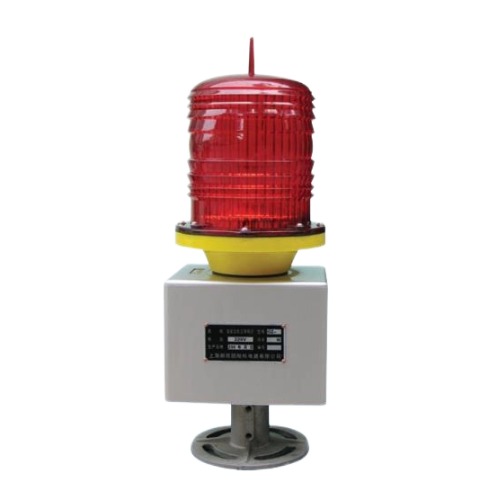

GZ-3 Intelligent Aero-obstruction lantern (medium light intensity)

Description

The GZ-3 AC flashing obstruction lantern is supplied with 220 V AC power, and with the constant control current set inside, there will be no influence to the flashing effect due to the voltage change. With the special cold light source, low energy consumption, long life cycle, the GZ-3 AC flashing obstruction lantern is a energy saving and environment friendly product of excellent performance.

This obstruction lantern is composed of lantern holder, lantern body and lantern shade. The lantern holder applies Aluminum die casting materials, the lantern body uses injection molding materials, and imported PC materials for the lantern shade, with the advantages of impact resistance, anti-aging, and high intensity etc.

Two ways of flashing:
1.single flash – intelligent
2.synchronized inter-flashing – centralized control box

Technical parameters:
1.Operating voltage: AC220V
2.Light intensity available: > 1600cd
3.Life cycle of light source: 80,000 hours
4.Watt loss: <20W
5.Ambient temperature: -40℃~+70℃
6.Dimension: 164×158×440mm
7.Installation dimension: 4 holes of 10mm diameters well-distributed on the 92mm pitch circle
8.Sealing grade: IP 65
9.Lantern shade color: red, white
10.Weight: 2.3Kg
