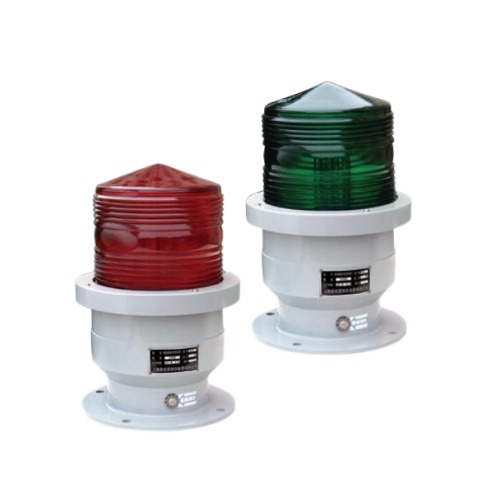

GZ-7 Intelligent Aero-obstruction Lantern (medium light intensity)

Description

Besides all functions of GZ220-6, the GZ-7 adopts the Tungsten Halogen Light Source specially used for navigation mark, which has the properties of excellent light effect and long life cycle.
Meanwhile, it has adopted the soft start technology. The start current is very small, and the voltage rises gradually, which avoids the impact to the light source and further improves the life cycle of the lantern. The lantern shade is the Fresnel lens of PC material, which has properties of high intensity and anti-high temperature. This product has a far visual range and is a kind of aero-obstruction lantern with excellent performance.

There are three ways of synchronized flashing available:
1.Common type – adopts the centralized control box to realize the synchronized flashing
2.Intelligent type – starts directly, and adopts the synchronized line to realize the synchronized flashing
3.Soft start – adopts the synchronized line to realize the synchronized flashing of series mode.

Main technical parameters:
AOperating voltage: AC220V
BRated power consumption: 150W – 200W
CLight intensity available: >2000cd
DColor: red, green, white
EFlashing frequency: 12 times/minute (adjustable)
FAmbient temperature: -40℃~+70℃
GElectric intensity at normal state: 2000V, 50Hz, 1min without puncture and flashing over.
HInstallation dimension of the holder: 4 holes of 14mm diameters well-distributed on the 220mm pitch circle
INet weight: 4.8Kg
JSealing grade: IP65
