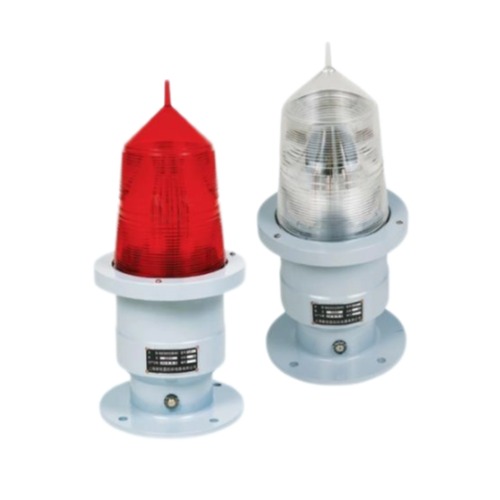

GZ-75 LED Intelligent Aero-obstruction lantern (medium light intensity)

Description

GZ-75 LED intelligent Aero-obstruction lantern is mainly composed of aluminum-made holder and Fresnel lens, and adopts imported high-brightness LBD as the light source. The advantages are: low energy consumption, long life cycle (utility time is 50,000 hours), high light, few heating. Especially, for the environmental protection requirements of global warming, the benefit of solid cold light source is more prominent. The inventers in New Hangyuan adopt the method of first arranged and combined by dividing the circle equally to arrange the solid cold light source, so that it can send stronger flashing. The configuration is original and reasonable.

Ways of flashing:
1.synchronized flashing – centralized control box
2.synchronized flashing – master control light
3.single flashing – intelligent

Main parameters:
1.Operating voltage: AC220V
2.Light source: imported high-brightness LED
3.Life cycle of light source: 80,000 hours
4.Watt loss: <20W 5.Flashing frequency: 20-30 times/minute 6.Light intensity available: >2500cd
7.Flashing light color: red, white, yellow, green
8.Installation dimension: 4 holes of 14mm diameters well-distributed on the 195mm pitch circle
9.Sealing grade: IP 65
10.Ambient temperature: -40℃~+70℃
11.Net weight: 4.5Kg
12.Dimension: 220×220×500mm
